|  White Backup | Online Help | previous topicnext topic

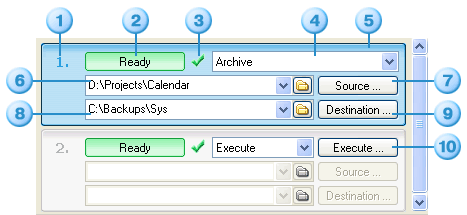

Action list

Every action is marked with a rectangle containg control elements inside. Use right scroll bar to navigate action list.

Action list

Every action contains the following elements:

  1. Action number.
    Shows action number in the list. Actions in task are executed consecutively from the first to the last.(see Tasks and actions). Action sequence can be edited using toolbar buttons
  2. Action status.
    Shows current action status:
    Action is active and will be executed in a task.
    Action is inactive and will be canceled during task execution.
    Action is waiting for the execution (Previous action is executing.) In this status it is not allowed to change actions parameters.
    Action is completed but the task is still executing.(Next action is executing.). In this status it is not allowed to change actions parameters.
    Action is executing now. Action is indicated with a progress bar. In this status it is not allowed to change actions parameters.
    Action is paused. Action is indicated with a progress bar. In this status it is not allowed to change actions parameters.
  3. Change action activity button.
    It may look like or depending on action is active or not. By pressing on this button one can change action activity. Only active actions will be executed.
  4. Action type.
    Allows to select desired action type(see more Tasks and actions).
  5. Background rectangle.
    Shows selection status in the action list:
    Action is selected in the list. All operations(toolbar buttons) will be applied to this action. At that list is active and you are able to change selected action using arrow keys and scroll the list with mouse wheel.
    Action is selected bu the list is not active.Program focus is on another window element of the program. To make the list active click once on an every action in the list.
    Action is highlighted when you move mouse cursor on a rectangle
    Action is inactive and not highlighted.
  6. Source folder.
    Shows the path to source folder files. Pop up list keeps paths entered before.Button launches select folder window. Source folder is inactive for program execution actions.
  7. Source folder parameters.
    Launches source folder parameters window, where you can adjust files to be used. Source folder parameters button is inactive for program execution actions.
  8. Destination folder.
    Shows the path to destination folder files. Pop up list keeps paths entered before.Button launches select folder window. Destination folder is inactive for deleting, deleting to recycle bin and program execution actions.
  9. Destination folder parameters.
    Launches destination folder parameters window, where you can adjust archive filename, coincident files action, destination folder hierarchy. Destination folder parameters button is inactive for deleting, deleting to recycle bin and program execution actions.
  10. Program execution parameters.
    This button appears only when an action type is program execution. Launches program execution parameters window, where you can select an application to be launched and adjust lauch parameters.
